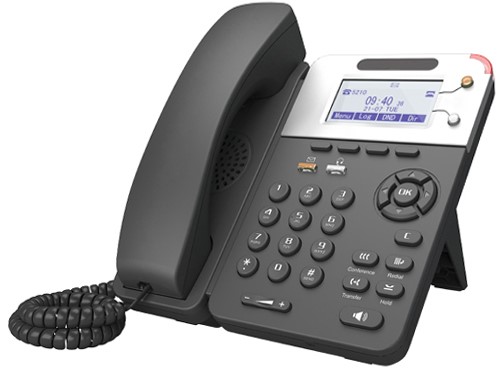

P-220 IP Phone

     P-220 is a highly innovative based SIP VoIP phone, It can perfectly satisfy with all kinds of the businessman communication.ES280-P integrates with 2.4” 132x64-pixel graphical LCD with backlight, a large resolution display screen, elegant and intuitive user interface. ES280-P offers high audio quality HD handset, HD speaker and HD codec (G.722), with a rich set of business communication features that can definitely improve working efficiency and sense.


    P-220is highly suitable for SMEs, Home Office and ISP applications.Specially designed for IP service.



KEY FEATURES

  • 2 SIP accounts,
  • 3-way conferencing
  • Auto-answer
  • Black list
  • Call forward
  • Call history
  • Call hold
  • Call return
  • Call transfer (blind/busy/ask)
  • Call waiting
  • Caller ID display
  • DND
  • Direct IP call without SIP proxy
  • Hotline
  •  Hand-free indicator
  • Mute
  • Multi-Language
  • Redial
  • Ring tone selection
  • SMS
  • Time setting(SNTP/SIP Server/manual)
  • Speed dial
  • Supports PC control
  • Switching SIP server & Second server
  • Volume control
  • Message Waiting Indication LED


Advanced Features

  • Functions customizable keys
  • XML Phone Book search and input & output
  • Enterprise phone book(800 entries)
  • LDAP phone book


IP PBX System Integration

  • Busy lamp field (BLF), BLF list
  • DND & Forward synchronization
  • Intercom, Paging, MOH
  • Bridged line appearance (BLA)
  • Call pickup, Dial Plan
  • Call recording


Codes and Voice Features

  • Wideband Codec: G.722
  • Narrowband codec: G.711μ/A, G.723.1, G.726, G.729AB,iLBC
  • Full-duplex, Automatic Echo Cancel
  • Support VAD/CNG/AEC/AGC


Network Features

  • SIP V1 (RFC2543), V2 (RFC3261)
  • SIP connection: Proxy  mode & Peering Points mode
  • DNS SRV (RFC3263);
  • SRTP voice encryption(RFC3711)
  • Redundant server support
  • NAT Traversal: STUN mode
  • DTMF: In-Band, RFC2833, SIP Info
  • HTTP/HTTPS  Web Management
  • IP Assignment: Static/DHCP/PPPoE
  • Bridge/Router mode for PC port
  • TFTP/DHCP/PPPoE client
  • DNS client, NAT/DHCP server


Management

  • Auto-provision via FTP/TFTP/HTTP/HTTPS
  • Configuration: browser/phone/auto-provision
  • SNMP V1/2
  • Trace package and system log export


Physical Features

  • 2.4”132x64 graphic LCD
  • 33 keys including 2 programmable keys
  • 5 x LED indicator:
    - LED for call and message waiting indication
    - Line keys with LED indicator: 2
    - Dual-color (red or green) illuminated LEDs for line status information;
    - LED for headset;
  • Power consumption: 1.4-2.6W
  • Power over Ethernet:IEEE802.3af Class0
  •  HD Hands-free Speaker (0~ 7KHz) x 1
  • HD Hands-free Microphone (0~ 7KHz) x 1
  • HD Handset (RJ9 )x 1
  • 2xRJ45 10/100M Ethernet ports
  • Power adapter: AC 100~240V input
  • DC 5V/1A output
  • Operating temperature: 0~40℃
  • Storage temperature: up to 60°C
  • Operating humidity: 10~95%
  • Color: Black
  • 42.5° bracket and wall-mountable
  • Dimension: 185 x 185 x 40mm
  • Net weight: 1.02 Kg


Security

  • VLAN(802.1pq), LLDP, AES,CDP
  • TLS (Transport Layer Security)
  • Phone lock for personal privacy protection
  • L2TP VPN tunneling protocol - added
  • Admin/User 2-level configuration mode
