Overview


OV3000-IAD Gateway is cutting-edge products that connect analogue telephones, fax machines and PBX systems with IP telephony networks and IP-based PBX systems. Featuring rich functionalities and easy configuration.

OV3000-IAD is ideal for small and medium enterprises that wish to integrate a traditional phone system into any IP-based system.

The OV3000-IAD series provides 8/16/32 analog user access, to meet any different scale enterprise requirements.

Features and Benefits

Completed various capacity

OV3000-IAD can provide 8/16/32/64 analog user ports.

Interoperability

nteroperable with a broad list of softswitch, PBX, and IP-PBX.

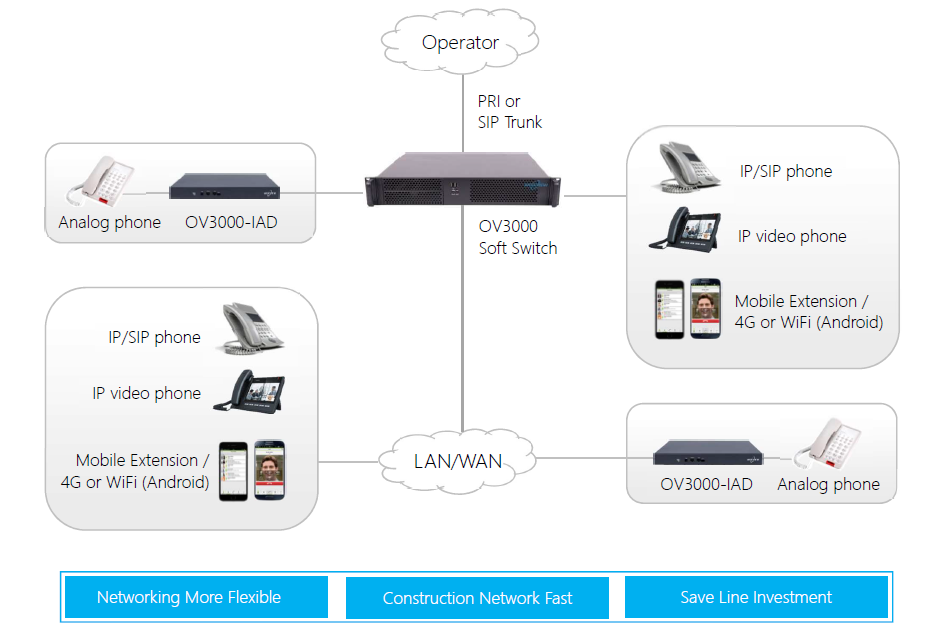

Applications

Specification

FXS Ports:8口 16口, 32口

Protocol: SIP/ RFC3261, SDP / RFC2327, RTP/RTCP, MGCP, H.248

Codec: G.711(alaw/ulaw), G.723, G.729

Voice Capability: Echo Cancellation, Dynamic Jitter Buffer, VAD, CNG, PLC

DTMF Mode: RFC2833, SIP Info, In-band

Network:  Static Route, DHCP, PPPoE, 802.1Q VLAN

Management: Web, TR069

Port: 1 x WAN, 3 x LAN ;1 x WAN,4 x LAN,1 x Console; 1 x WAN,4 x LAN,1x Console;

Input: AC 100-240V, DC12V 5

Power: < 18W ;< 30W;< 40W

Operation Range:  -10～50℃

Humidity:  10-95% non-condensing

Dimensions (L×W×H) (mm): 240×154×37 mm ;440×230×44 mm(1U);440×250×44 mm(1U)
