OVERVIEW
OV3000-DT is is a large-capacity gateway device
which is created independently for enterprise / industry and service provider
of voice business requirements.
OV3000-DT offers SMBs cost effective
additions to legacy telephone systems to bring the true benefits of VoIP. The
gateway is located at the interface of the PSTN and the IP network which can
realize the conversion of SS7 / PRI / V5.2 / CAS / Q.Signal / DPNSS signaling
and VOIP SIP protocol, and complete the media stream conversion between the
bearer channel of the PSTN with the IP network.
It’s suitable for small and medium
enterprises, call centers, service provider and large enterprise access or
other fields.
FEATURES
& BENEFITS
Using Gigabit FPGA Ethernet switching
technology, processing ability is more powerful.
Supports Gigabit network interface, and
with QoS function of NAT routing.
Built-in large-capacity intelligent phone
book solution and NTP network time server.
SIP protocol, according to RFC3261
standard.
Supports digital trunk (E1/T1) & VoIP
trunk gateway.
Supports Web based remote management and
client centralized network management.
Supports call log, call statistical,
complete call routing, CDR etc.
TYPE

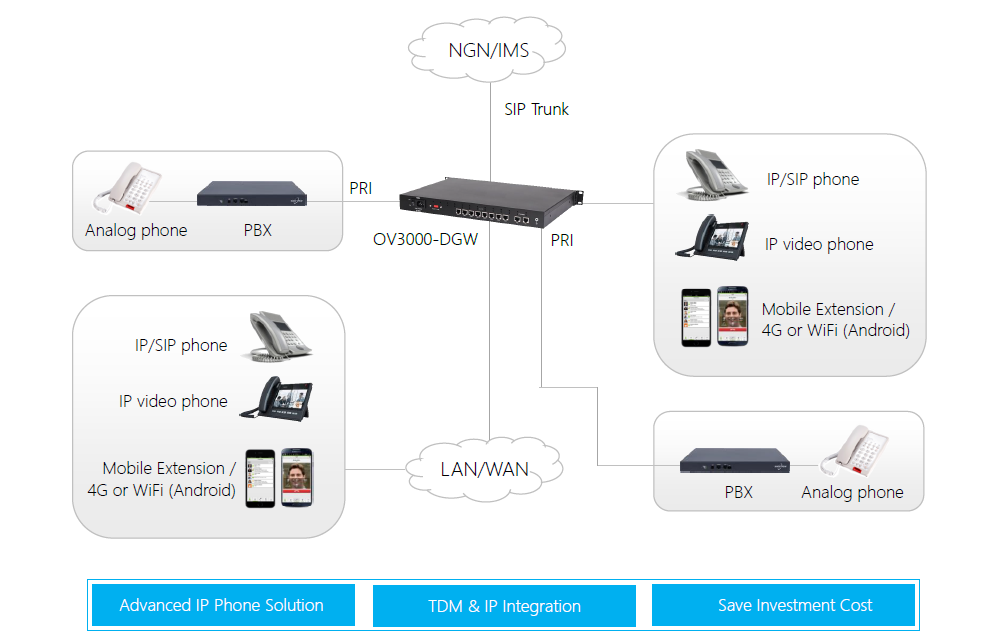

APPLICATION
As the NGN network coming, more and more
telecom operator move to their core exchange from TDM to NGN (IMS/Soft Switch).
OV3000-DT makes traditional PBX device which without IP interface to access to
telecom operator’s IMS/NGN network be possible.
OV3000-DT can also be registered by SIP
phone, SIP video phone, soft phone etc. terminals and with complete CDR.
SPECIFICATION
STICSPHYSICAL CHARACTERISTICS
-
E1/T1 Port: 1E1/T1, 2E1/T1, 4E1/T1, 81 x 10/100/1G console LAN port for
-
configuring the device
-
Serial Port: 1 x RS232, for configuration, monitoring and upgrading
-
LED Lamp: Power lamp, Run lamp, Network lamp, Line lamp
-
Reboot Button : Support
-
Grounding Interface: PCB board, cabinet due isolation grounding
FEATURE SUPPORT
-
Voice Algorithm : Dynamic Jitter Buffer, Echo Cancellation, Fax tone detection
-
Voice Coding : G711a, G711u, G.723, G.729, G.726, G.729A, ILBC, VAD, CNG, G.168
-
Fax: T.30, T.38
-
PBX feature (Call Routing, CDR, Call Forwarding/Waiting/Holding/Pickup & DND etc)
-
IVR and VoiceXMLv2 support
-
SIP, SIP/TLS signaling support
-
DTMF: In band & out of band signaling support (RFC2833), SIP INFO
-
QoS : Layer 3 QoS
-
IETF RFC 3261 compliance
NETWORK FEATURES
-
TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, DHCP, NTP, FTP.SSH,
-
HTTP/ HTTPS, PPPoE, SIP, STUN, SRTP, TLS
-
Support TR069 to open automatic deployment, support HTTP upgrade, local upgrade
-
NAT Routing Support
DIAGNOSIS
-
Security Diagnostics: Firewall, HTTPS web management, Black/White list, SSH, RTP encryption
-
PSTN Disconnection: Support PSTN intelligent detection and automatic matching function
ENVIRONMENTAL CONDITIONS
-
Operating Temperature: 0-40℃
-
Storage Temperature: -20 - 70℃
-
Humidity: 10-90% non-condensing
DIMENSION & POWER SUPPLY
-
400mm×234.5mm×44mm (1U cabinet)
-
AC: 100V ~ 240V, DC: -48V
|
